Datalogic QD2590 – The market trend towards 2D barcodes has clearly spread across the whole data capture industry. This is particularly true at Retailers’ where POS check-out activities face an increased need for 2D scanning and at the same time rely on reading mobile phone displays and loyalty cards.

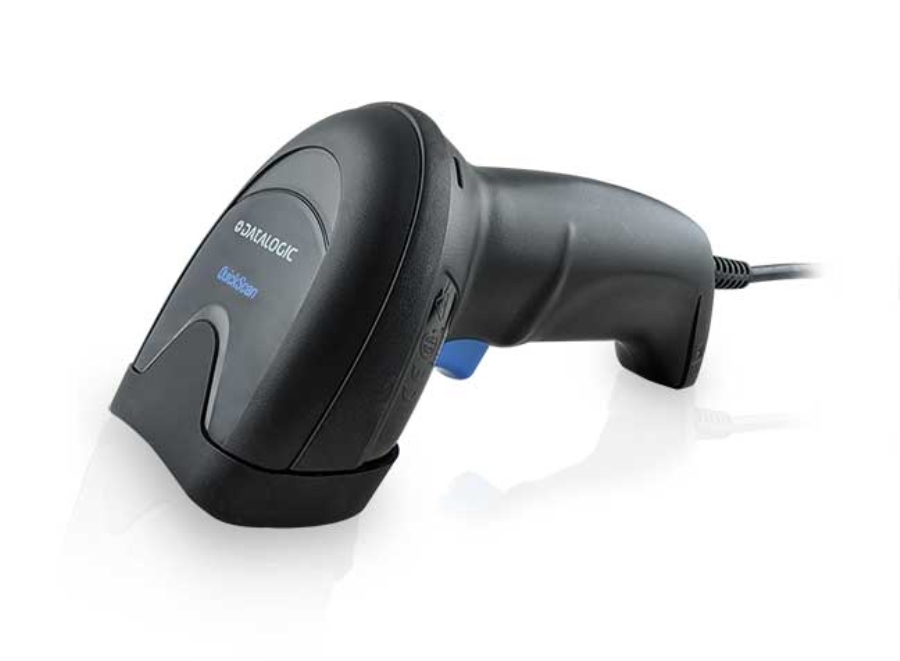

Datalogic Quickscan QD2590 2D Imager Barcode Scanner with Scan Stand and USB Cable – (PSC QD2590-BKK1S)
Scans: 1D, 2D, QR Codes
Interface Cable: USB
Includes: Scan Stand
Warranty: 5 Years
Product Brand: Datalogic
MPN: PSC QD2590-BKK1S
Available To Order
R2,060.80 incl vat
Flat Rate Delivery (Gauteng & Nationwide): R140 excl VAT across all provinces.
Local Pickup: Free collection available from our premises.
Processing Time: Orders are ready for collection or dispatch within 2 to 4 working days after payment reflects in our account.
THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT
The QuickScan 2500 2D imager is your trusted companion at the POS check-out. It knows very well the importance of prompt readings, whatever the barcode, regardless of whether it’s hard-to-read, poorly printed or damaged, and it easily scans mobile devices and through plexiglass barriers, all at an incredibly affordable price.
EXTREME PRECISION CONVEYED
A sense of extreme precision is conveyed to the operator at any time, facilitating their job by clearly showing where the scanner is pointing. From the intuitive blue dot of the QW2500 model, you can even get all the extra-precision you need with the outstanding aimer of the QD2500 model, made of two blue sharply-defined triangles. Datalogic’s ‘Green Spot’ technology then confirms the good read, perfectly centered on the barcode and between the two triangles, backed up by a powerful beeper that can be adjusted to your preferred level of sound. Overall, the soft red illumination lowers fatigue on the operator’s eyes.
DATALOGIC QD2590 CUTTING-EDGE DESIGN AND FEATURES
Whenever the operator picks up the device, it switches automatically into ‘handheld mode’ for manual reading, thanks to Datalogic’s advanced Motionix™ motion-sensing technology. A seamless transition to presentation mode is then offered by the QD2500 model and its auto-sense capability. Featuring the distinctive design and family feeling of the Datalogic general purpose offering of handheld scanners, the QuickScan 2500 series offers a choice of two colors: black and white, and a variety of stands and accessories to best fit in any in-store environment.
Datalogic QuickScan QD2590 Technical Specifications
| Category | Specification | Details |
| Optical & Sensor | Image Sensor | 1 Megapixel ($1280 \times 800$ pixels) |
| Light Source | Aiming: Blue LED ($468\text{ nm}$) Illumination: Red LED ($624\text{ nm}$) | |
| Motion Tolerance | 30 inches per second (IPS) | |
| Print Contrast | 15% minimum reflectance difference | |
| Scan Angles | Pitch: $\pm 65^\circ$ | Roll (Tilt): $$360^\cir$ | Skew (Yaw): $ $\pm 65^\ci$ | |
| Feedback Indicators | Beeper (adjustable tone/volume), Datalogic “Green Spot” feedback, Good-Read LED | |
| Decoding Capability | 1D / Linear Codes | Auto-discriminates all standard 1D codes including GS1 DataBar |
| 2D / Matrix Codes | Data Matrix, QR Code, Micro QR, Aztec Code, MaxiCode, Dot Code, Han Xin Code | |
| Postal & Stacked | PDF417, MicroPDF417, GS1 Composite, Australian Post, Royal Mail, Postnet, KIX, etc. | |
| Digital Watermarking | Digimarc Barcodes | |
| OCR / Special | OCR-A, OCR-B, MICR (dependent on setup) | |
| Maximum Resolution | 1D Linear | 3 mils ($0.077\text{ mm}$) |
| PDF417 | 3 mils ($0.077\text{ mm}$) | |
| Data Matrix | 5 mils ($0.127\text{ mm}$) | |
| QR Code | 6.7 mils ($0.170\text{ mm}$) | |
| Typical Depth of Field | Code 39 (5 mils) | $0.5\text{ to }25.0\text{ cm}$ ($0.2\text{ to }9.8\text{ in}$) |
| Code 39 (10 mils) | $0.5\text{ to }38.0\text{ cm}$ ($0.2\text{ to }14.9\text{ in}$) | |
| EAN/UPC (13 mils) | $0.5\text{ to }51.0\text{ cm}$ ($0.2\text{ to }20.1\text{ in}$) | |
| Data Matrix (10 mils) | $0.5\text{ to }21.5\text{ cm}$ ($0.2\text{ to }8.5\text{ in}$) | |
| PDF417 (6.7 mils) | $0.5\text{ to }21.0\text{ cm}$ ($0.2\text{ to }8.3\text{ in}$) | |
| QR Code (20 mils) | $0\text{ to }37.0\text{ cm}$ ($0\text{ to }14.6\text{ in}$) | |
| Connectivity & Power | Interfaces Supported | USB Type-C, USB (HID/COM), RS-232, Keyboard Wedge (KBW) Multi-Interface |
| Configuration Software | Datalogic Aladdin 3.0 | |
| Input Voltage | $5\text{ VDC} \pm 5\%$ | |
| Operating Current | $< 400\text{ mA}$ at $5\text{ V}$ | |
| Physical & Environmental | Dimensions | $14.8 \times 6.8 \times 12.6\text{ cm}$ ($5.8 \times 2.7 \times 4.96\text{ in}$) |
| Weight | $145\text{ g}$ ($5.1\text{ oz}$) | |
| Available Colors | Black, White | |
| Sealing Rating | IP52 (dust and water protected) | |
| Drop Spec & Durability | Withstands repeated drops from $1.5\text{ m}$ ($5.0\text{ ft}$) onto concrete; 10M+ trigger actuations | |
| Temperature Range | Operating: $0^\circ\text{C to }50^\circ\text{C}$ ($32^\circ\text{F to }122^\circ\text{F}$) Storage: $-40^\circ\text{C to }70^\circ\text{C}$ ($-40^\circ\text{F to }158^\circ\text{F}$) | |
| Ambient Light Immunity | $0\text{ to }110,000\text{ lux}$ (readable in direct sunlight) |
General & Scanning Capabilities
- What types of barcodes can the Datalogic QD2590 scan?The QD2590 is a 2D area imager capable of reading standard 1D linear barcodes, 2D matrix codes (such as QR Codes, Data Matrix, Aztec Code, and Maxicode), postal codes, PDF417, and Digimarc digital watermarks.
- Can the QD2590 read barcodes off mobile phone screens?Yes. It reliably scans digital barcodes, coupons, and QR codes directly off smartphone or tablet displays, as well as through Plexiglas protective barriers at retail checkouts.
- What aiming system does the QD2590 use?It features Datalogic’s blue aiming system with two sharply defined blue triangles that pinpoint the exact target area. This is paired with soft red illumination to reduce operator eye fatigue during extended shifts.
- How do I know when a scan is successful?The scanner uses Datalogic’s patented “Green Spot” technology, which projects a green spot directly onto the barcode to visually confirm a good read. It also includes a clear good-read LED indicator and an adjustable beeper.
Hardware, Stand & Operation
- Does the QD2590 switch automatically between handheld and hands-free modes?Yes. Built-in Motionix™ motion-sensing technology automatically detects when the scanner is picked up to switch to handheld mode, and transitions back to auto-sense presentation mode when placed in its stand.
- What comes included with the QD2590 scanner package?The complete kit (MPN:
PSC QD2590-BKK1S) includes the Datalogic QD2590 2D scanner unit, a hands-free scan stand, and a USB interface cable. - How durable is the QD2590 scanner?The scanner has an IP52 sealing rating against dust and liquid ingress, withstands repeated drops from up to 1.5 meters onto concrete, and features a trigger mechanism rated for over 10 million actuations.
Connectivity & Configuration
- How does the QD2590 connect to my host terminal or PC?It connects via USB (supporting USB HID/Keyboard, Virtual COM/Serial Emulation, and OEM USB interfaces) with support for both USB-A and USB-C connection protocols.
- How do I configure or program scanner settings?You can manage and configure the QD2590 using the free Datalogic Aladdin™ 3.0 software utility. Aladdin allows you to adjust settings, update firmware, and generate custom programming barcodes that can be scanned directly off a computer monitor or phone screen.
Warranty & Delivery
- What warranty is provided with the Datalogic QD2590?The scanner includes a 5-year manufacturer warranty.
- What are the dispatch and shipping options?Orders are typically ready for collection or courier dispatch within 2 to 4 working days after payment reflects. Flat-rate courier delivery is available nationwide, or free local pickup can be arranged from the warehouse.
