In fast-paced retail, warehousing, logistics, and healthcare environments, efficient operational workflows depend on reliable labeling. The Zebra ZD220 direct thermal desktop printer delivers essential performance, solid dual-wall construction, and Zebra’s signature reliability at an accessible price point.
TBA
Available To Order
- Free Delivery: Available for all Gauteng orders.
- Nationwide Delivery: For all other provinces R120 excl vat.
- Local Pickup: Free collection available from our premises.
Processing Time: Orders are ready for collection or dispatch within 2 to 4 working days after payment reflects in our account.

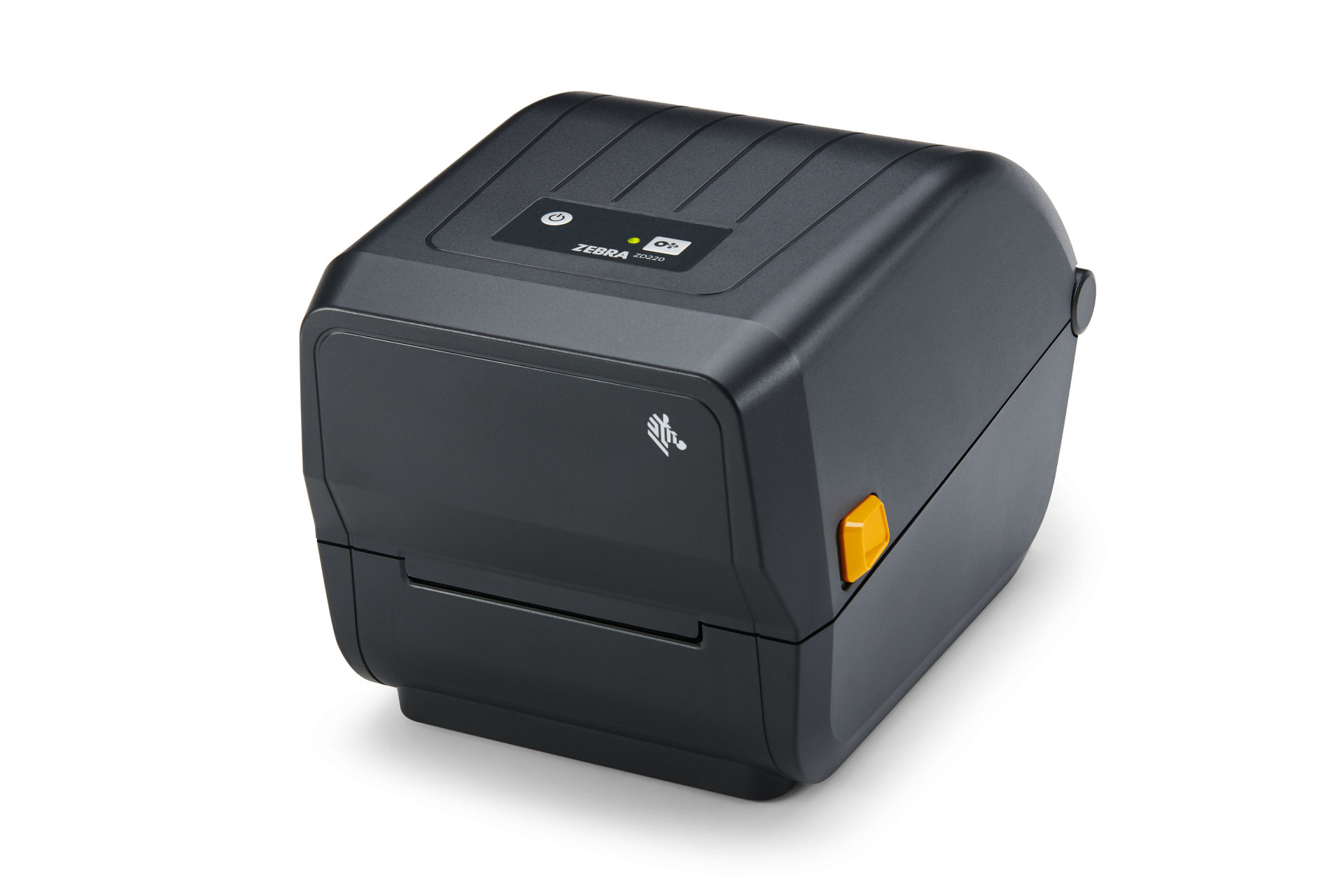

Zebra ZD220 Direct Thermal Label Printer: The Ultimate Entry-Level Barcode Solution
Designed to replace legacy desktop models like the GC420d, the ZD220d streamline desktop printing by eliminating the need for ribbons.
Print Method: Direct Thermal
Max Print Width: 104mm
Print Speed: 4ips
Interface Ports: USB
Warranty: 2 Years
Product Brand: Zebra
MPN: ZD22042-D0EG00EZ
Included Software: ZebraDesigner Essentials – easy label design tool
1. Zebra ZD220 Direct Thermal Cost-Effective Direct Thermal Operation
Direct thermal printing applies heat directly to chemically treated, heat-sensitive paper or synthetic label stock. Because no ink, toner, or thermal transfer ribbons are required, the ZD220d reduces operational overhead, minimizes consumable management, and keeps maintenance simple.
2. Zebra ZD220 Direct Thermal Plug-and-Play Simplicity
Featuring standard USB 2.0 connectivity, the ZD220d installs quickly across Windows and enterprise IT setups. Zebra’s OpenACCESS™ clamshell design allows operators to drop in new label rolls in seconds, reducing downtime during media changes.
3. Essential Media Handling & Sensing
Equipped with a fixed off-center gap sensor and a movable black mark sensor, the ZD220 handles diverse media formats—including continuous rolls, die-cut shipping labels, fan-fold media, tag stock, and wristbands.
4. Zebra ZD220 Direct Thermal Enterprise Language Support
The ZD220 comes standard with ZPL II® and EPL2™ programming languages native to Zebra’s printer line. This ensures drop-in compatibility with existing ERPs, Warehouse Management Systems (WMS), and e-commerce platforms like Shopify, Amazon, WooCommerce, and BarTender.
Ideal Applications for the Zebra ZD220d
- E-Commerce & Logistics: Courier waybills, shipping labels (4×6″), address tags, and carton identifiers.
- Retail & Ticketing: Product shelf tags, price markdowns, barcode labels, and promotional tags.
- Healthcare & Labs: Patient identification wristbands, specimen labels, and pharmacy prescription tracking.
- Asset & Office Management: Filing systems, shelf bin tags, and internal inventory management.
Zebra ZD220d vs. ZD230d: Key Differences
When selecting a 4-inch desktop printer, choosing between the ZD220 and ZD230 depends on volume and connectivity needs:
- Speed: The ZD220 prints at 4 ips (102 mm/s), while the ZD230 reaches 6 ips (152 mm/s).
- Connectivity Options: The base ZD220 offers USB 2.0 connectivity. The ZD230 offers optional Factory-Installed Ethernet, Wi-Fi, or Bluetooth.
- Duty Cycle: The ZD220 targets light-to-medium daily print volumes. The ZD230 is optimized for mid-range desktop demand.
Zebra ZD220 Direct Thermal Simple Setup & Maintenance Tips
- Use Zebra Certified Thermal Media: Quality heat-sensitive labels reduce residue accumulation and extend the life of the 203 dpi printhead.
- Clean the Printhead Regularly: Use isopropyl alcohol wipe pens after every 3-5 label rolls to maintain crisp barcode contrast and prevent burnt-on residue.
- Calibrate Media Correctly: Hold down the feed button until the LED blinks once to execute automatic label gap and media length calibration.
Here are the complete manufacturer technical specifications for the Zebra ZD220 Direct Thermal (ZD220d) desktop label printer.
Printer Specifications
| Feature | Technical Specification |
| Print Method | Direct Thermal (No ribbon required) |
| Resolution | 203 dpi / 8 dots per mm |
| Max Print Speed | 4 inches per second / 102 mm per second |
| Max Print Width | 4.09 in. / 104 mm |
| Max Print Length | 39.0 in. / 991 mm |
| Memory | 128 MB Flash / 128 MB SDRAM (50 MB non-volatile user memory / 8 MB user SDRAM) |
| Frame Construction | Dual-wall frame construction, high-impact polycarbonate plastic |
| Loading Mechanism | OpenACCESS™ clamshell design for media drop-in |
| User Interface | Single status LED, single feed/pause button |
Media & Sensing Characteristics
| Feature | Technical Specification |
| Media Width | 1.00 in. (25.4 mm) to 4.40 in. (112 mm) |
| Media Length | 1.0 in. (25.4 mm) minimum to 39.0 in. (991 mm) maximum |
| Max Roll Outer Diameter | 5.00 in. / 127 mm |
| Media Core Inner Diameter | Standard: 0.5 in. (12.7 mm) & 1.0 in. (25.4 mm) Optional Adaptor: 1.5 in. (38.1 mm) |
| Media Thickness | 0.003 in. (0.08 mm) min. to 0.0075 in. (0.1905 mm) max. |
| Media Types | Roll-fed or fan-fold, die-cut or continuous, direct thermal labels, tag stock, continuous receipt paper, wristbands (e.g., Z-Band) |
| Media Sensors | • Fixed off-center gap sensor • Movable black mark sensor (limited range from center to left side) • Head-up sensor |
Connectivity, Firmware & Software
| Feature | Technical Specification |
| Standard Interfaces | USB 2.0 High-Speed |
| Programming Languages | ZPL II®, EPL2™, XML |
| Printer Operating System | Link-OS® Basic |
| Software Applications | Zebra Print DNA Basic utilities (including Zebra Setup Utilities, ZebraDesigner Essentials) |
Fonts, Symbologies & Graphics
- Bitmap Fonts: 16 resident expandable ZPL II bitmap fonts, 5 resident expandable EPL2 fonts.
- Scalable Fonts: 2 resident scalable ZPL fonts. Supports Native OpenType fonts and Unicode compliance for multi-language thermal printing.
- 1D Barcode Symbologies: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, EAN 2- or 5-digit extensions, Plessey, POSTNET, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, LOGMARS, MSI, Codabar, Planet Code.
- 2D Barcode Symbologies: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec.
Physical Dimensions & Weight (Direct Thermal Model)
- Length: 8.6 in. / 220 mm
- Width: 6.9 in. / 176 mm
- Height: 5.9 in. / 151 mm
- Weight: 2.5 lbs. / 1.1 kg
Electrical & Environmental Specs
- Power Supply: Auto-detectable / Auto-ranging external power supply (PFC Compliant)
- Input Voltage: 100–240 VAC, 50–60 Hz
- Output: 24 VDC, 3.125A
- Efficiency Compliance: ENERGY STAR® 2.0 qualified, Energy Efficiency Level VI
- Operating Temperature: 40°F to 105°F (4.4°C to 41°C)
- Storage Temperature: -40°F to 140°F (-40°C to 60°C)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 95% non-condensing
