In retail checkouts, hospitality counters, and industrial kiosk setups, touchscreen monitors need to balance rapid response times with heavy-duty construction. The PinnPOS SK-170P-A1 17-inch Capacitive Touchscreen POS Monitor delivers a commercial-grade, IP65-rated front panel designed for continuous daily operation in demanding commercial environments across South Africa.
Featuring a 5:4 aspect ratio, Projected Capacitive (PCAP) multi-touch technology, and versatile video input interfaces, the SK-170P-A1 serves as a high-reliability touch display for desktop point-of-sale setups, self-service terminals, and interactive kiosks.

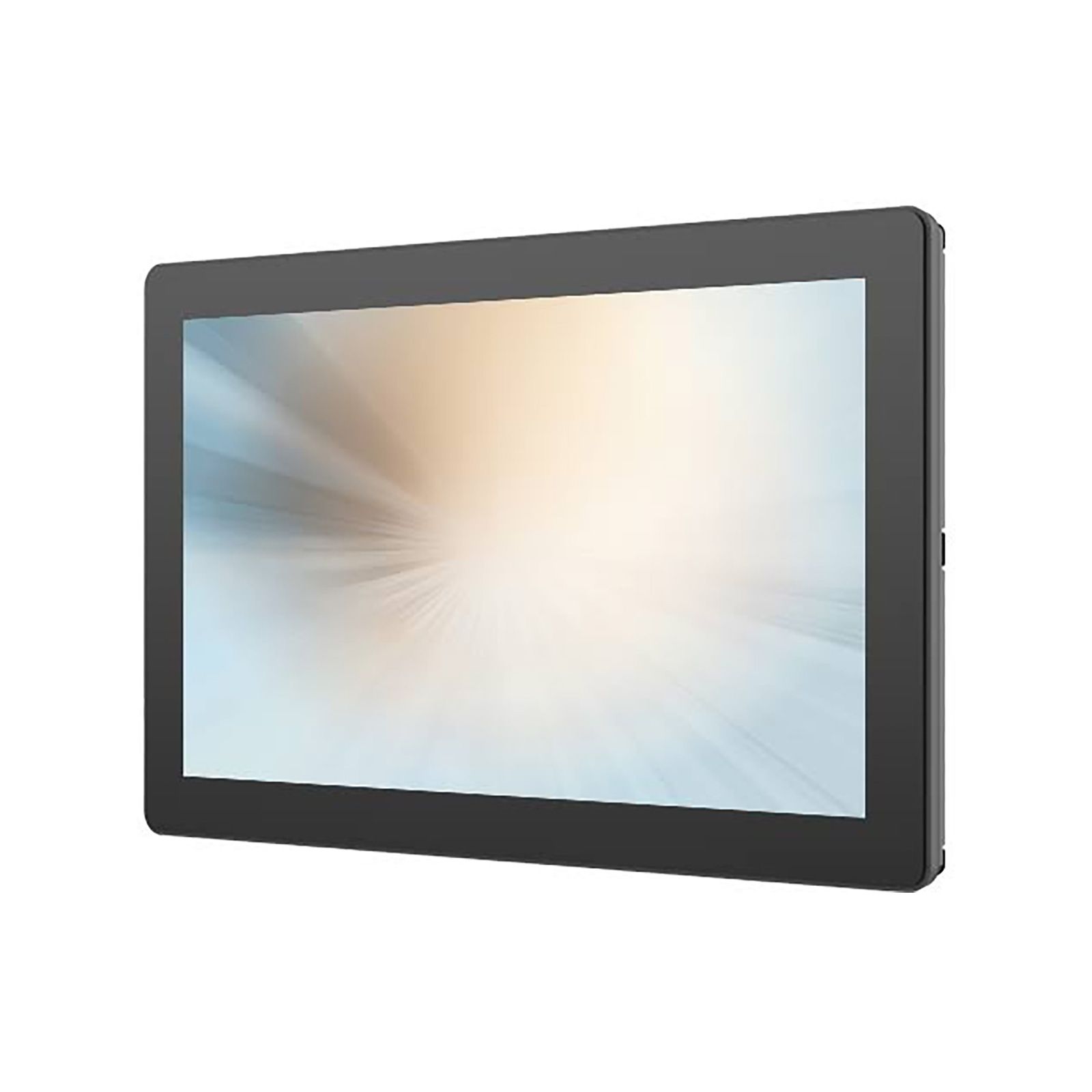

PinnPOS SK-170P-A1 17-Inch Touchscreen POS Monitor
R6,152.50 incl vat
8450 200 | 300
R5,350.00 excl vat
- Free Delivery: Available for all Gauteng orders.
- Nationwide Delivery: For all other provinces R120 excl vat.
- Local Pickup: Free collection available from our premises.
Processing Time: Orders are ready for collection or dispatch within 2 to 4 working days after payment reflects in our account.
Available To Order
PINNPOS 17 INCH CAPACTIVE TOUCH SCREEN
1280 x1024 USB
Primary Benefits for POS & Kiosk Deployment
1. 10-Point PCAP Capacitive Touch Interface
Unlike legacy resistive touchscreens that rely on pressure and scratch-prone flexible overlays, the SK-170P-A1 features a smooth, edge-to-edge glass Projected Capacitive (PCAP) panel. Supporting up to 10 simultaneous touch points, it delivers light, lag-free touch response—even when operators use bare fingers, gloved hands, or specialized POS styluses.
2. Commercial IP65 Spill and Dust Protection
Countertop checkout environments are frequently subject to splashes, dust, and continuous wiping. The front panel of the SK-170P-A1 carries an IP65 ingress protection rating, sealing the glass face against dust contamination and liquid ingress. This makes it an effective choice for busy food service, kitchen, retail checkout, and industrial workshop environments.
3. Universal Video & Touch Connectivity
The monitor integrates easily with existing POS hardware or micro PCs through a multi-port interface array:
- Display Inputs: Includes HDMI, DisplayPort (DP), and legacy VGA inputs to interface with modern small-form-factor PCs, thin clients, or existing point-of-sale terminal towers.
- USB-HID Touch Output: Uses a standard USB-HID (Type-A to Type-B) interface that installs automatically on Windows (10/11) and Linux operating systems without requiring custom driver configurations.
4. Flexible Desktop or VESA Mount Setup
The monitor features standard 100 x 100 mm VESA mounting holes on the rear housing, allowing it to be mounted onto wall brackets, articulated counter arms, or integrated kiosk enclosures. It can also be paired with an optional heavy-duty industrial desktop stand for traditional checkout counter placement.
Target Industry Applications
- Supermarkets & Retail Point-of-Sale: Provides a clear 1280 x 1024 visual field for checkout operators running complex cashier software, item lookup databases, and scale feeds.
- Restaurants, Cafes & Fast Food: The IP65 splash-resistant glass front withstands food splashes and high-frequency disinfectant wiping down.
- Self-Service Kiosks & Price Checkers: Heavy-duty SECC metal construction ensures long-term resistance to public wear and tear in self-checkout lanes or interactive catalog terminals.
PinnPOS SK-170P-A1 Technical Specifications
| Specification Category | Technical Details |
| Model / SKU | PinnPOS SK-170P-A1 |
| Display Size & Type | 17-inch TFT LCD Active Matrix Display |
| Native Resolution | SXGA (1280 × 1024) @ 60Hz |
| Aspect Ratio | 5:4 Standard Commercial Format |
| Touch Technology | 10-Point Projected Capacitive (P-CAP) |
| Touch Interface | USB 2.0 Type-B (USB-HID Compliant, Plug & Play) |
| Brightness | 250 cd/m² (Typical) / 225 cd/m² (With Touch Panel) |
| Contrast Ratio | 1000:1 (Typical) |
| Viewing Angles | 170° Horizontal / 160° Vertical |
| Response Time | 5 ms |
| Video Interfaces | 1× HDMI, 1× DisplayPort (DP), 1× VGA (DB15) |
| Auxiliary Ports | 1× RJ11 (for optional OSD remote key) |
| Ingress Protection | IP65 Sealed Water & Dust Proof Front Panel (Rear IPX1) |
| Enclosure Materials | Commercial Glass, SECC Metal, ABS Plastic |
| Mounting Options | VESA 100 mm × 100 mm (Base stand sold separately or omitted) |
| Power Supply | External 12V DC Adapter (50W max power consumption) |
| Operating Temperature | 0°C to 40°C (20% to 80% non-condensing humidity) |
| Certifications & Safety | CE, FCC, RoHS, UL 62368, CB |
Does the PinnPOS SK-170P-A1 include a desktop stand in the box?
Depending on distributor packaging, the base monitor is often supplied as a standalone touch display with standard rear VESA 100 x 100 mm mounting points. An optional industrial desktop base stand can be ordered separately if counter mounting is required.
What operating systems support the SK-170P-A1 touchscreen?
Because the touch controller uses standard USB-HID protocol, the monitor is plug-and-play compatible with Windows 10, Windows 11, Windows 10 IoT Enterprise, Linux, and Android (with host USB support).
What cables are included with the monitor?
The monitor package typically includes an external 12V DC power supply, AC power cable, USB touch cable (Type-A to Type-B), and standard video display cables (HDMI and VGA).
