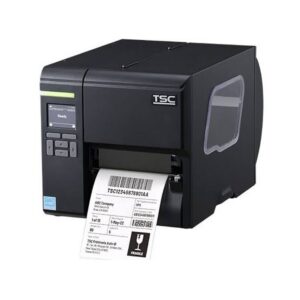

When space is at a premium but operational demands require industrial-grade reliability, finding the right barcode label printer can be challenging. The TSC ML241P bridges this gap as a light-industrial thermal transfer label printer designed for high-duty cycles, ultra-compact footprints, and whisper-quiet operation.
R10,430.50 incl vat
Includes 2 free wax ribbons
Available To Order
- Free Delivery: Available for all Gauteng orders.
- Nationwide Delivery: For all other provinces R120 excl vat.
- Local Pickup: Free collection available from our premises.
Processing Time: Orders are ready for collection or dispatch within 2 to 4 working days after payment reflects in our account.
Everything You Need to Know About the TSC ML241P Industrial Label Printer
Engineered with a robust die-cast aluminum print mechanism and a user-friendly color display, the ML241P delivers enterprise-level printing capabilities without taking up valuable workspace.
Print Method: Thermal Transfer/Direct Thermal
Print Resolution: 203dpi
Display: 2.3″ color LCD
Max Print Width: 108mm
Print Speed: 8ips
Interface Ports: USB + USBHOST + Serial + Ethernet
RTC: Yes
Included Software: Bartender UL and Drivers
Ribbon Length: 450 meters
Brand: TSC
MPN: ML241P-A001-0202
1. Ultra-Compact Footprint & Low Noise Design
The ML241P features a streamlined design that significantly reduces its operational footprint compared to traditional industrial printers. Additionally, its optimized printing mechanism drastically reduces noise levels during high-volume print runs, making it an ideal fit for quiet office-adjacent environments, healthcare settings, and crowded retail backrooms.
2. TSC ML241P Tool-less Maintenance and Easy Setup
Downtime costs money. The TSC ML241P features a wide-opening bi-fold cover that gives operators effortless access to the media path. The printhead and print roller can be removed and replaced without specialized tools, making routine cleaning and maintenance straightforward for any team member.
3. TSC ML241P Intuitive Color GUI Display
Equipped with a vivid 2.3-inch color LCD screen and real-time status indicators, operating the printer is straightforward. The user-friendly interface allows technicians to quickly calibrate media, adjust print settings, and monitor printer health at a glance.
4. Self-Diagnostic TPH Care Mechanism
TSC’s advanced Printhead Self-Diagnostic System continuously monitors printhead status in real time. By identifying dead dots or heating anomalies before a job runs, the ML241P prevents poor-quality barcode output, reducing unscannable labels and costly re-prints.
Primary Applications
- Warehousing & Logistics: Shipping/receiving, packing lists, carton identification, and cross-docking labels.
- Manufacturing: Work-in-progress (WIP) tracking, product labeling, compliance tags, and inventory control.
- Healthcare & Retail: Specimen tracking, pharmacy labeling, shelf tags, and asset management.
Final Verdict: Is the TSC ML241P Right for Your Business?
If you require an industrial label printer that offers heavy-duty metal core durability, quiet operation, and a space-saving footprint, the TSC ML241P is a top-tier contender. It provides an exceptional balance of performance, ease of use, and low total cost of ownership.
The complete technical specifications for the TSC ML241P industrial barcode label printer:
TSC ML241P Printing Specifications
- Printing Method: Thermal Transfer & Direct Thermal
- Print Resolution: 203 dpi (8 dots/mm)
- Max. Print Speed: Up to 8 inches per second (204 mm/s)
- Max. Print Width: 4.25 inches (108 mm)
- Max. Print Length: 1,000 inches (25,400 mm)
- Processor: 32-bit RISC CPU
- Memory: 128 MB SDRAM, 128 MB Flash Memory (expandable via MicroSD up to 32 GB)
TSC ML241P Media & Ribbon Specifications
- Media Types: Continuous, die-cut, black mark, fan-fold, notch (outside wound)
- Media Width: 0.8″ to 4.7″ (20 mm to 118 mm)
- Media Thickness: 0.06 mm to 0.19 mm (2.36 mil to 7.48 mil)
- Media Core Diameter: 1″ to 1.5″ (25.4 mm to 38.1 mm)
- Label Roll Capacity: Up to 8″ (203.2 mm) Outer Diameter
- Ribbon Capacity: Up to 450 meters length (1″ core, ink-in or ink-out)
- Ribbon Width: 1.6″ to 4.3″ (40 mm to 110 mm)
TSC ML241P Interfaces & Connectivity
- Standard Interfaces:
- USB 2.0 High Speed
- USB Host (front panel)
- RS-232 Serial
- Internal Ethernet (10/100 Mbps)
- Optional Interfaces:
- Internal Bluetooth 5.0 MFi (factory option)
- Slot-in Wi-Fi 802.11 a/b/g/n/ac with Bluetooth 5.0 combo module (dealer option)
- GPIO interface kit
Physical & Hardware Features
- Display: 2.3″ Color LCD with navigation buttons
- Sensors:
- Transmissive gap sensor (position adjustable)
- Reflective black mark sensor (position adjustable)
- Head open sensor
- Ribbon end sensor
- Real-Time Clock (RTC): Standard
- Construction: Heavy-duty die-cast print mechanism with metal cover and large clear media window
- Dimensions (W x H x D): 248 mm x 245 mm x 416 mm (9.76″ x 9.65″ x 16.38″)
- Weight: 7.7 kg (16.98 lbs)
Firmware, Fonts & Software
- Printer Languages / Emulations: TSPL-EZD (Auto-emulation for TPLE, TPLZ, TPLD / EPL, ZPL, ZPL II, DPL)
- Supported Barcodes:
- 1D: Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, GS1 DataBar, etc.
- 2D: PDF-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39
- Management Software: BarTender UltraLite, TSC Console, SOTI Connect support, Internal Embedded Webpage
Electrical & Environmental
- Power Supply: Internal universal switching power supply (Input: AC 100–240V, Output: DC 24V 2.5A, 60W)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 60°C (-40°F to 140°F)
- Sustainability: 100% recyclable casing and packaging; over 90% recyclable components
Factory / Dealer Options & Accessories
- Regular guillotine cutter (full cut)
- Peel-off kit (Peeler)
- Linerless cutter kit
- Internal Bluetooth / Wi-Fi combo module
